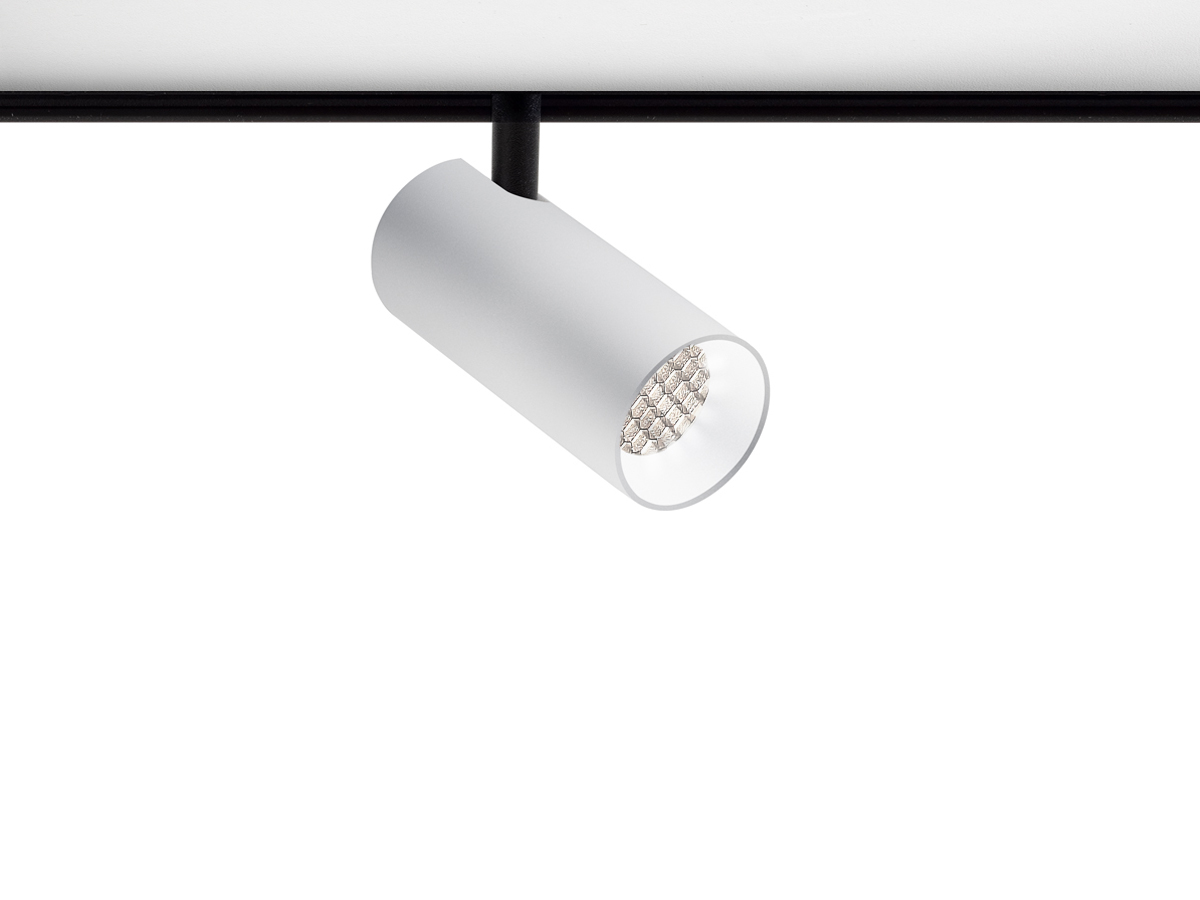

street 5
48V DC dimmable (DALI)B42301.005.1719
Finishes
Data sheet
- Code B42301.005.1719
- System power consumption 8,4W
- Efficacy 73.75lm/W
- Light source LED
- Colour temperature 2700K Ra>90
- Light distribution adjustable
- Beam angle 24°
- Power supply 48V DC
- Electrical configuration dimmable (DALI)
- Driver remote not included
- Nominal luminous flux 695lm
- Lumen output 590lm
- Efficiency 84.9%
- Weight 0,33 kg
- Protection degree IP20
- Packing dimensions 0,0 x 0,0 x 0,0 cm
Lighting fixture for electrified track for interiors, with swivelling light beam.
Die-cast aluminium joint and double-axes rotating structure.
Thermoplastic anti-glare snoot and medium-beam lens.
Equipped with electric and mechanical adapter for 48V low voltage electrified tracks.
Available in 2700K and 3000K version, in white, black, mat brass, bronze and titanium finishes, with with black arm and back cover.
Application
Download
Technical drawing
-
9600-1/B-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, black, 2000mm (78,7") long.
EDownload Instructions
-
9600-1/B-ST5
-
9600-1/J-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, white, black interior, 2000mm (78,7") long.
EDownload Instructions
-
9600-2/B-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, black, 2000mm (78,7") long.
EDownload Instructions
-
9600-2/B-ST5
-
9600-2/J-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, white, black interior, 2000mm (78,7") long.
EDownload Instructions
-
9600-3/B-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, black, 2000mm (78,7") long.
EDownload Instructions
-
9600-3/B-ST5
-
9600-3/J-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, white, black interior, 2000mm (78,7") long.
EDownload Instructions
-
9600-R05-90/B-ST1
90° curve for suspensed or ceiling-mounted 48V DC DALI electrified track, black, 500mm (19.7") radius.
EDownload Instructions -
9600-R05-90/J-ST1
90° curve for suspensed or ceiling-mounted 48V DC DALI electrified track, white, black interior, 500mm (19.7") radius.
EDownload Instructions
-
YBE41902.DV1
Integrated 50W on/off power supply for electrified 48V track, with 2 additional cables for DALI feed-through wiring, black.
-
YDV.048.075.A01
LED driver, 75W 48V DC, on/off.
-
YDV.048.150.A01
LED driver, 150W 48V DC, on/off.
-
9601-E/B
Head power supply for 48V DC DALI electrified track, black.
-
9601-E/W
Head power supply for 48V DC DALI electrified track, white.
-
9601-S/B
Integrated head power supply for 48V DC DALI electrified track, with 2500mm long power cable, black.
-
9604/ST1-B
-
9604/ST1-W
-
9604/ST5-B
-
S-9600/B-E-3000
Aesthetic cover for recessed 48V DC electrified track, lenght 3000mm (118,1"), black.
-
S-9600/B-E1-3000
Aesthetic cover for 48V DC electrified track, lenght 3000mm (118,1"), black.
-
YKS41900.01
Suspension kit with 2000mm (78,7") long steel wire and regulator, for electrified track, one every 450mm.
-
9603/B
Linear electrified joint for 48V DC DALI track, black.
-
9605-O/B
L-shaped junction cover for ceiling-mounted 48V DC electrified track, black.
-
9605-O/W
L-shaped junction cover for ceiling-mounted 48V DC electrified track, white.
-
9605-V/B
L-shaped junction cover for wall-ceiling corner for ceiling-mounted 48V DC electrified track, black.
-
9605-V/W
L-shaped junction cover for wall-ceiling corner for ceiling-mounted 48V DC electrified track, white.
-
9611/B
Electrified "L" joint for 48V DC DALI track, black.
-
9618-S/B
Flexible electrified joint for 48V DC DALI track, black.
-
YRS.B048.A16
Repeater device for opto-isolating the data bus, for 48V DC DALI electrified track.
