rendez-vous street
48V DC dimmable (DALI)BL08006.007.1719
Finishes
Data sheet
- Code BL08006.007.1719
- System power consumption 2W
- Efficacy 55.5lm/W
- Light source LED
- Colour temperature 2700K Ra>90
- Light distribution flood
- Beam angle 25°
- Power supply 48V DC
- Electrical configuration dimmable (DALI)
- Driver remote not included
- Nominal luminous flux 120lm
- Lumen output 111lm
- Efficiency 92.5%
- Weight 0,20 kg
- Protection degree IP20
- Colour tollerances SDCM 3
- Packing dimensions 17,0 x 8,5 x 13,0 cm

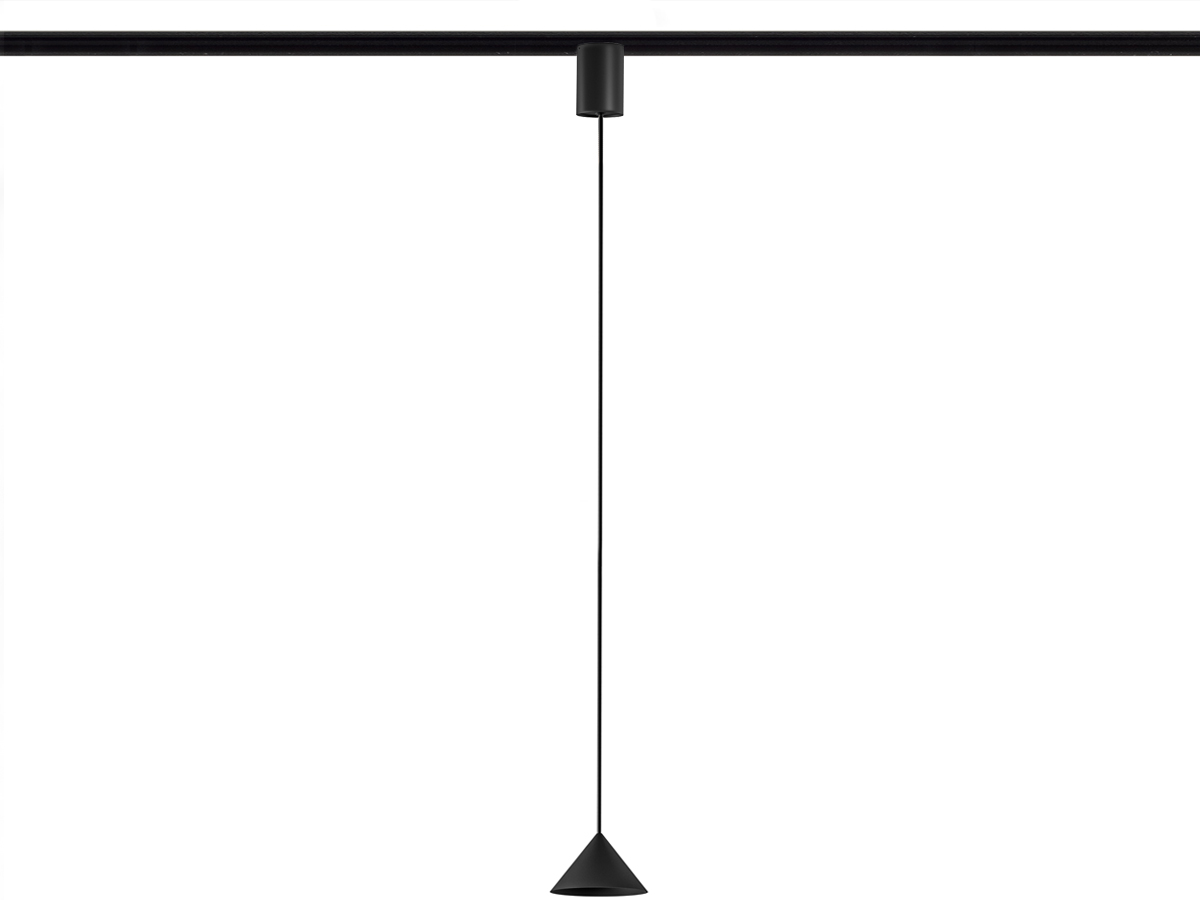

Suspension lighting fixture for multiple compositions in interiors, with direct light emission.
Die-cast aluminium head with polyacrylic paint finish in mat black or bronze.
Turned aluminium end plate with polyacrylic paint in mat black or bronze.
Black PVC coaxial suspension and power cable 3m (118.
1") long.
Black power supply canopy with 48V track adaptor for the Street track series.
Download
Technical drawing
-
KGA08006.54
-
YLN08000.42
-
9600-1/B-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, black, 2000mm (78,7") long.
EDownload Instructions
-
9600-1/B-ST5
-
9600-1/J-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, white, black interior, 2000mm (78,7") long.
EDownload Instructions
-
9600-2/B-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, black, 2000mm (78,7") long.
EDownload Instructions
-
9600-2/B-ST5
-
9600-2/J-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, white, black interior, 2000mm (78,7") long.
EDownload Instructions
-
9600-3/B-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, black, 2000mm (78,7") long.
EDownload Instructions
-
9600-3/B-ST5
-
9600-3/J-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, white, black interior, 2000mm (78,7") long.
EDownload Instructions
-
9600-R05-90/B-ST1
90° curve for suspensed or ceiling-mounted 48V DC DALI electrified track, black, 500mm (19.7") radius.
EDownload Instructions -
9600-R05-90/J-ST1
90° curve for suspensed or ceiling-mounted 48V DC DALI electrified track, white, black interior, 500mm (19.7") radius.
EDownload Instructions
-
YBE41902.DV1
Integrated 50W on/off power supply for electrified 48V track, with 2 additional cables for DALI feed-through wiring, black.
-
YDV.048.075.A01
LED driver, 75W 48V DC, on/off.
-
YDV.048.150.A01
LED driver, 150W 48V DC, on/off.
-
9601-E/B
Head power supply for 48V DC DALI electrified track, black.
-
9601-E/W
Head power supply for 48V DC DALI electrified track, white.
-
9601-S/B
Integrated head power supply for 48V DC DALI electrified track, with 2500mm long power cable, black.
-
9604/ST1-B
-
9604/ST1-W
-
9604/ST5-B
-
S-9600/B-E-3000
Aesthetic cover for recessed 48V DC electrified track, lenght 3000mm (118,1"), black.
-
S-9600/B-E1-3000
Aesthetic cover for 48V DC electrified track, lenght 3000mm (118,1"), black.
-
YKS41900.01
Suspension kit with 2000mm (78,7") long steel wire and regulator, for electrified track, one every 450mm.
-
9603/B
Linear electrified joint for 48V DC DALI track, black.
-
9605-O/B
L-shaped junction cover for ceiling-mounted 48V DC electrified track, black.
-
9605-O/W
L-shaped junction cover for ceiling-mounted 48V DC electrified track, white.
-
9605-V/B
L-shaped junction cover for wall-ceiling corner for ceiling-mounted 48V DC electrified track, black.
-
9605-V/W
L-shaped junction cover for wall-ceiling corner for ceiling-mounted 48V DC electrified track, white.
-
9611/B
Electrified "L" joint for 48V DC DALI track, black.
-
9618-S/B
Flexible electrified joint for 48V DC DALI track, black.
-
YRS.B048.A16
Repeater device for opto-isolating the data bus, for 48V DC DALI electrified track.
