ombra
220-240V AC dimmable (DALI/Push DIM)A16019.065.0502
Finishes
Data sheet
- Code A16019.065.0502
- System power consumption 12,2W
- Efficacy 44.17lm/W
- Light source LED
- Colour temperature 2700K Ra>90
- Power supply 220-240V AC
- Frequency 50/60Hz
- Electrical configuration dimmable (DALI/Push DIM)
- Driver integrated included
- Nominal luminous flux 1448lm
- Lumen output 530lm
- Efficiency 36.6%
- Weight 1,18 kg
- Protection degree IP20
- Colour tollerances SDCM <3
- Packing dimensions 17,0 x 17,0 x 80,0 cm

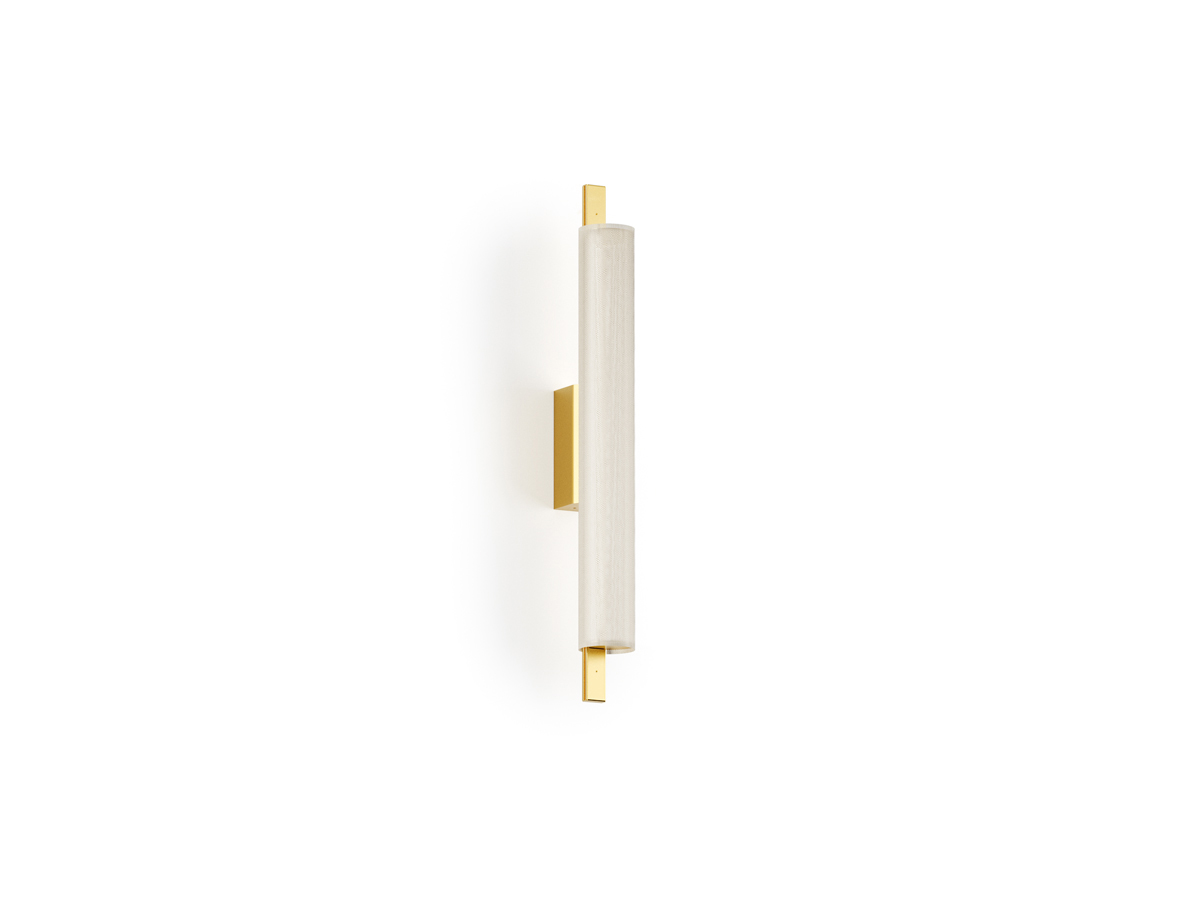

Wall-mounted luminaire for indoor installation, with direct emission.
Extruded aluminium frame with polyacrylic paint finish in mat black or mat brass.
White PVC-coated woven fabric shade.
Polycarbonate inner diffuser screen.
Wall mounting base in pickled sheet metal with polyacrylic paint in satin black or satin brass colour.
Integrated ballast in the fixing base.
Technical drawing
