bella street
48V DC dimmable (DALI)BL05317.011.0519
Data sheet
- Code BL05317.011.0519
- System power consumption 6,5W
- Efficacy 64.67lm/W
- Light source LED
- Light source lifetime L80 (B10) 70.000h
- Colour temperature 2700K Ra>90
- Light distribution diffused
- Power supply 48V DC
- Electrical configuration dimmable (DALI)
- Driver remote not included
- Nominal luminous flux 460lm
- Lumen output 388lm
- Efficiency 84.3%
- Weight 0,31 kg
- Protection degree IP20
- Colour tollerances SDCM 3
- Packing dimensions 12,0 x 24,0 x 13,0 cm

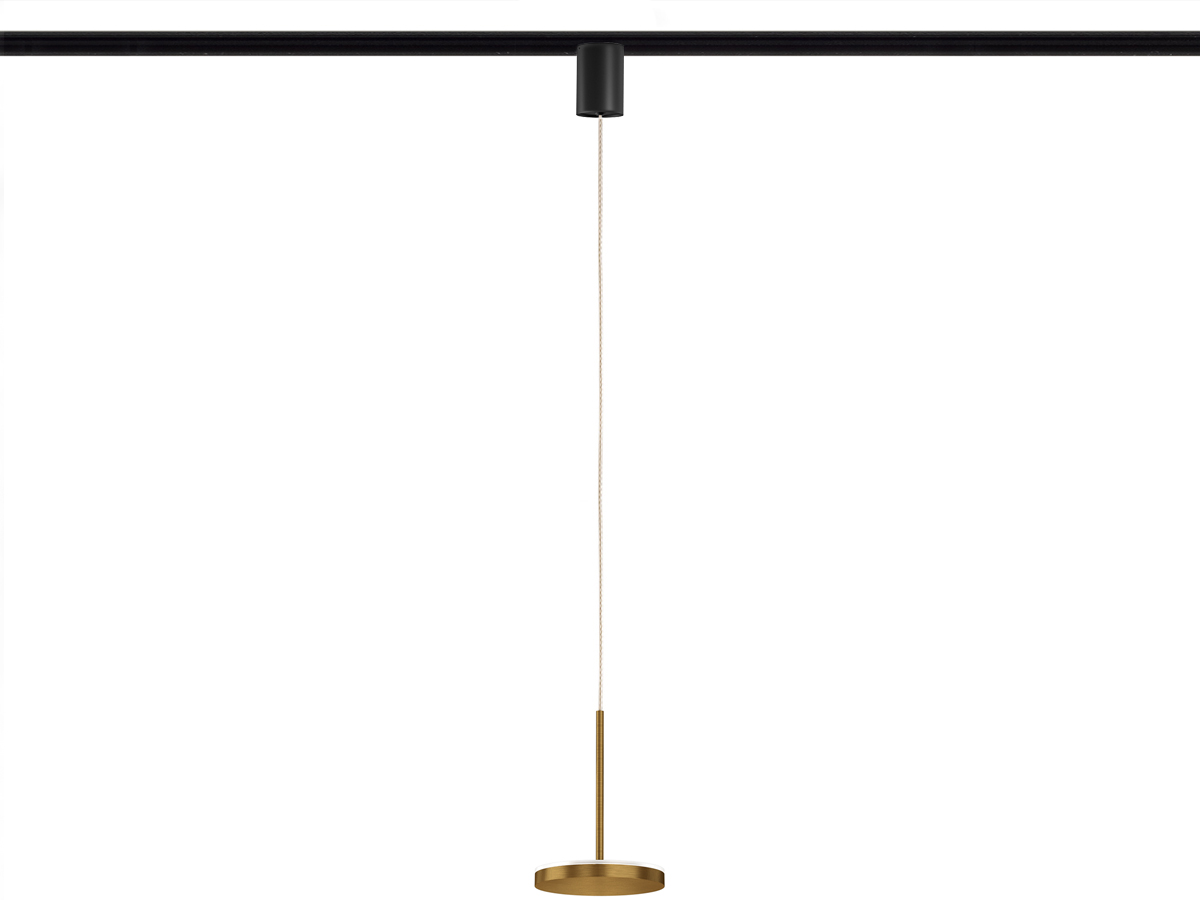

Suspension lighting fixture for interiors, with indirect light emission.
Die-cast aluminium structure in white, black, bronze or mat brass polyacrylic paint.
Modelled acrylic diffuser with mat finish.
Aluminium closing disk in polyacrylic paint.
Suspension kit with rod in brass tube in polyacrylic paint.
3m (118,1") long suspension and coaxial power cable in transparent PVC.
Black power supply canopy with 48V track adaptor for the Street track series.
Technical drawing
Polar diagram
-
9600-1/B-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, black, 2000mm (78,7") long.
EDownload Instructions
-
9600-1/B-ST5
-
9600-1/J-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, white, black interior, 2000mm (78,7") long.
EDownload Instructions
-
9600-2/B-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, black, 2000mm (78,7") long.
EDownload Instructions
-
9600-2/B-ST5
-
9600-2/J-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, white, black interior, 2000mm (78,7") long.
EDownload Instructions
-
9600-3/B-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, black, 2000mm (78,7") long.
EDownload Instructions
-
9600-3/B-ST5
-
9600-3/J-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, white, black interior, 2000mm (78,7") long.
EDownload Instructions
-
9600-R05-90/B-ST1
90° curve for suspensed or ceiling-mounted 48V DC DALI electrified track, black, 500mm (19.7") radius.
EDownload Instructions -
9600-R05-90/J-ST1
90° curve for suspensed or ceiling-mounted 48V DC DALI electrified track, white, black interior, 500mm (19.7") radius.
EDownload Instructions
-
YBE41902.DV1
Integrated 50W on/off power supply for electrified 48V track, with 2 additional cables for DALI feed-through wiring, black.
-
YDV.048.075.A01
LED driver, 75W 48V DC, on/off.
-
YDV.048.150.A01
LED driver, 150W 48V DC, on/off.
-
9601-E/B
Head power supply for 48V DC DALI electrified track, black.
-
9601-E/W
Head power supply for 48V DC DALI electrified track, white.
-
9601-S/B
Integrated head power supply for 48V DC DALI electrified track, with 2500mm long power cable, black.
-
9604/ST1-B
-
9604/ST1-W
-
9604/ST5-B
-
S-9600/B-E-3000
Aesthetic cover for recessed 48V DC electrified track, lenght 3000mm (118,1"), black.
-
S-9600/B-E1-3000
Aesthetic cover for 48V DC electrified track, lenght 3000mm (118,1"), black.
-
YKS41900.01
Suspension kit with 2000mm (78,7") long steel wire and regulator, for electrified track, one every 450mm.
-
9603/B
Linear electrified joint for 48V DC DALI track, black.
-
9605-O/B
L-shaped junction cover for ceiling-mounted 48V DC electrified track, black.
-
9605-O/W
L-shaped junction cover for ceiling-mounted 48V DC electrified track, white.
-
9605-V/B
L-shaped junction cover for wall-ceiling corner for ceiling-mounted 48V DC electrified track, black.
-
9605-V/W
L-shaped junction cover for wall-ceiling corner for ceiling-mounted 48V DC electrified track, white.
-
9611/B
Electrified "L" joint for 48V DC DALI track, black.
-
9618-S/B
Flexible electrified joint for 48V DC DALI track, black.
-
YRS.B048.A16
Repeater device for opto-isolating the data bus, for 48V DC DALI electrified track.
