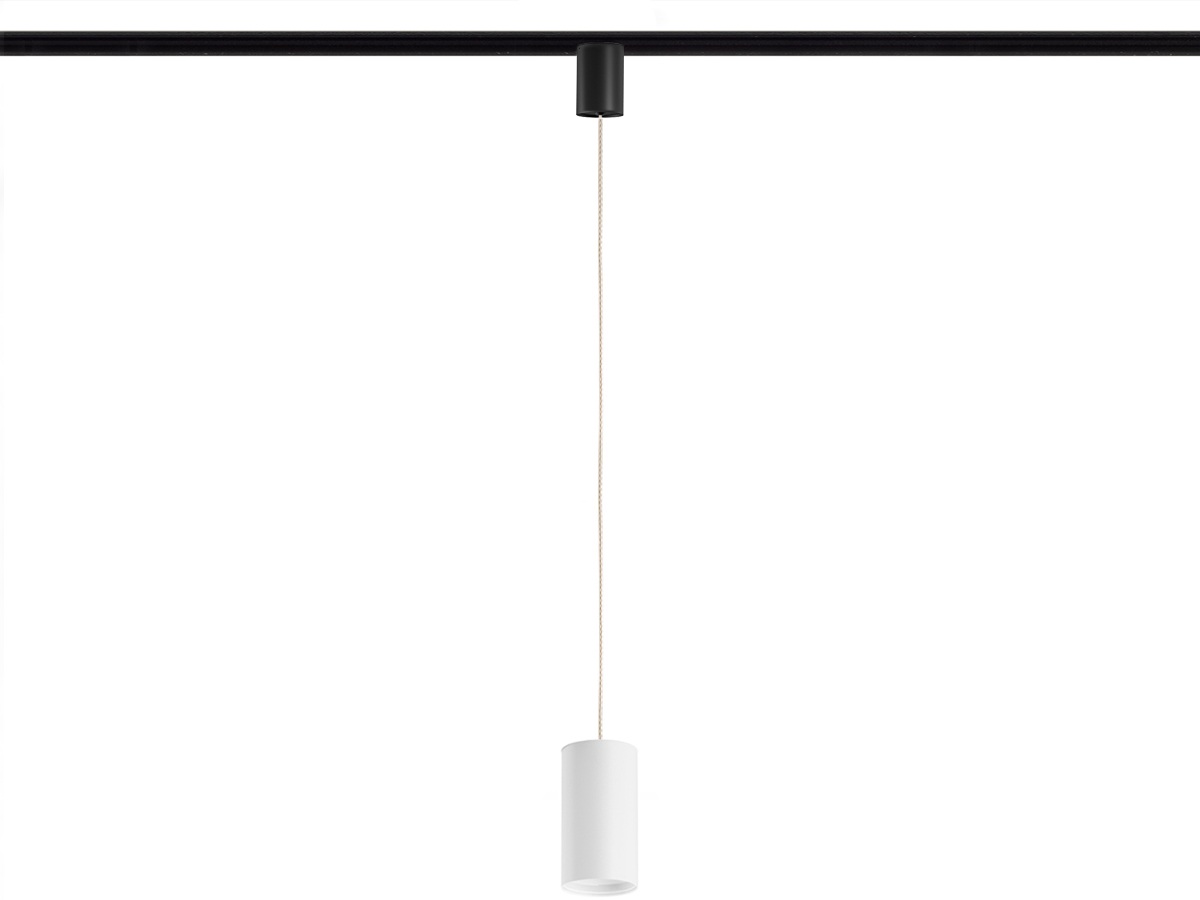

432 ways street
48V DC dimmable (DALI)BL12701.006.0419
Finishes
Data sheet
- Code BL12701.006.0419
- System power consumption 6,7W
- Efficacy 128.83lm/W
- Light source LED
- Light source lifetime L90 (B10) 50.000h
- Colour temperature 3000K Ra>90
- Light distribution diffused
- Beam angle 29°
- Power supply 48V DC
- Electrical configuration dimmable (DALI)
- Driver remote not included
- Nominal luminous flux 878lm
- Lumen output 773lm
- Efficiency 88%
- Weight 0,38 kg
- Protection degree IP20
- Colour tollerances SDCM 3
- Packing dimensions 17,0 x 8,5 x 13,0 cm
Ceiling lighting fixture for interiors, with direct light emission.
Extruded and milled aluminium structure, with polyacrylic paint finish in white, black, bronze, mat brass, textured olive green or textured natural terracotta.
Lens holder not included, to be purchased separately.
Black power supply canopy with 48V track adaptor for the Street track series.
Technical drawing
-

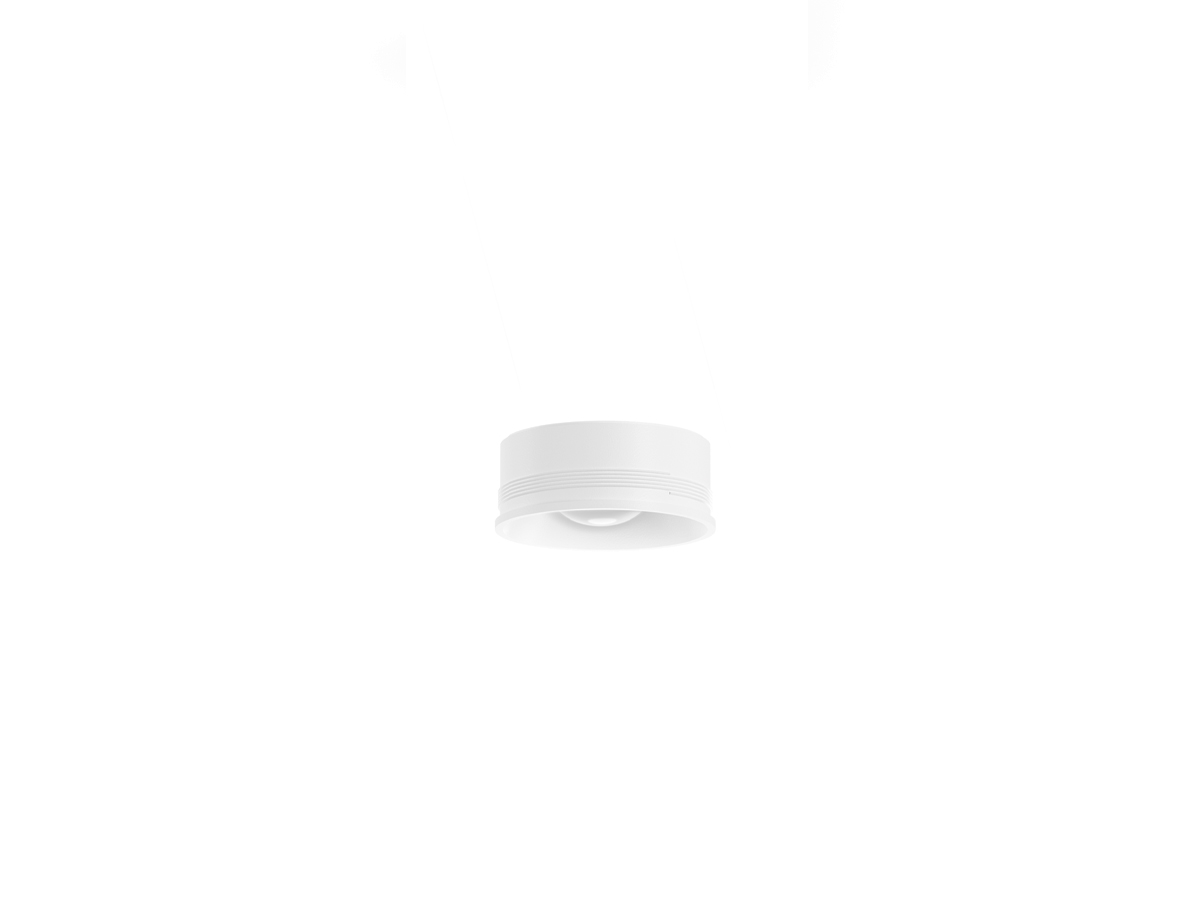

YSL12701.006.FL
Lens holder for 432 Ways, in aluminium, with polyacrylic paint finish in white, black, bronze, mat brass, textured olive green or textured natural terracotta.
EDownload Instructions
-

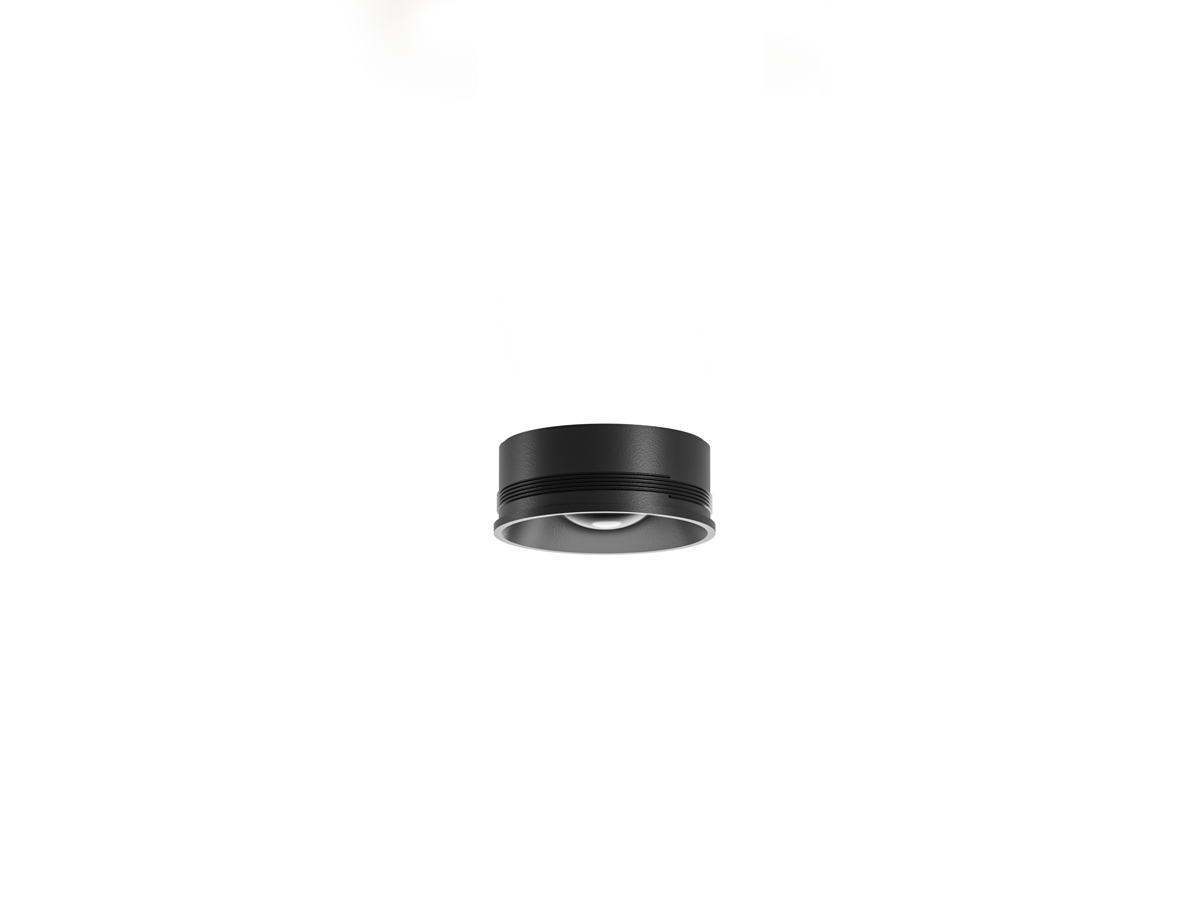

YSL12702.006.FL
Lens holder for 432 Ways, in aluminium, with polyacrylic paint finish in white, black, bronze, mat brass, textured olive green or textured natural terracotta.
EDownload Instructions
-
YSL12717.006.FL
Lens holder for 432 Ways, in aluminium, with polyacrylic paint finish in white, black, bronze, mat brass, textured olive green or textured natural terracotta.
EDownload Instructions
-
YSL12719.006.FL
Lens holder for 432 Ways, in aluminium, with polyacrylic paint finish in white, black, bronze, mat brass, textured olive green or textured natural terracotta.
EDownload Instructions
-

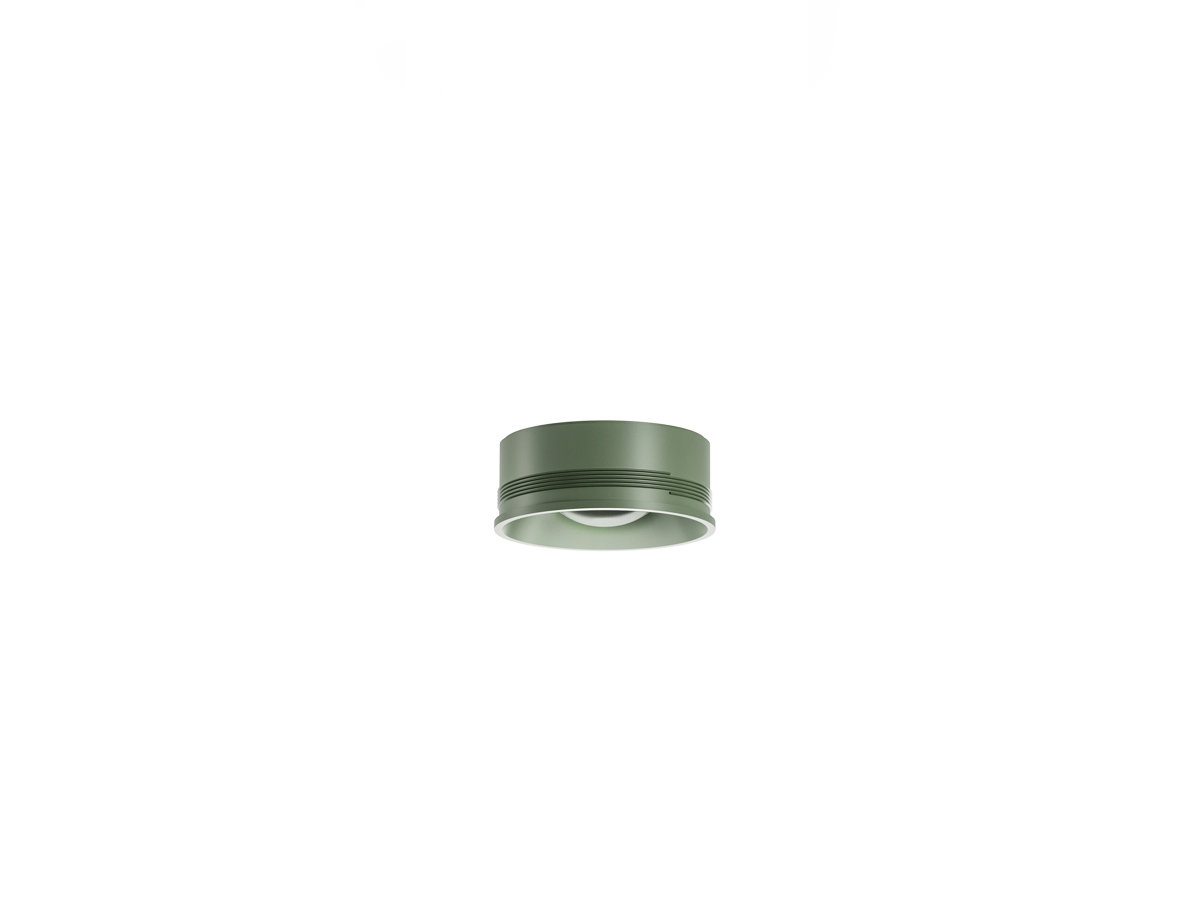

YSL12727.006.FL
Lens holder for 432 Ways, in aluminium, with polyacrylic paint finish in white, black, bronze, mat brass, textured olive green or textured natural terracotta.
EDownload Instructions
-
YSL12729.006.FL
Lens holder for 432 Ways, in aluminium, with polyacrylic paint finish in white, black, bronze, mat brass, textured olive green or textured natural terracotta.
EDownload Instructions
-
9600-1/B-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, black, 2000mm (78,7") long.
EDownload Instructions
-
9600-1/B-ST5
-
9600-1/J-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, white, black interior, 2000mm (78,7") long.
EDownload Instructions
-
9600-2/B-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, black, 2000mm (78,7") long.
EDownload Instructions
-
9600-2/B-ST5
-
9600-2/J-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, white, black interior, 2000mm (78,7") long.
EDownload Instructions
-
9600-3/B-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, black, 2000mm (78,7") long.
EDownload Instructions
-
9600-3/B-ST5
-
9600-3/J-ST1
Suspensed or ceiling-mounted 48V DC DALI electrified track, white, black interior, 2000mm (78,7") long.
EDownload Instructions
-
9600-R05-90/B-ST1
90° curve for suspensed or ceiling-mounted 48V DC DALI electrified track, black, 500mm (19.7") radius.
EDownload Instructions -
9600-R05-90/J-ST1
90° curve for suspensed or ceiling-mounted 48V DC DALI electrified track, white, black interior, 500mm (19.7") radius.
EDownload Instructions
-
YBE41902.DV1
Integrated 50W on/off power supply for electrified 48V track, with 2 additional cables for DALI feed-through wiring, black.
-
YDV.048.075.A01
LED driver, 75W 48V DC, on/off.
-
YDV.048.150.A01
LED driver, 150W 48V DC, on/off.
-
9601-E/B
Head power supply for 48V DC DALI electrified track, black.
-
9601-E/W
Head power supply for 48V DC DALI electrified track, white.
-
9601-S/B
Integrated head power supply for 48V DC DALI electrified track, with 2500mm long power cable, black.
-
9604/ST1-B
-
9604/ST1-W
-
9604/ST5-B
-
S-9600/B-E-3000
Aesthetic cover for recessed 48V DC electrified track, lenght 3000mm (118,1"), black.
-
S-9600/B-E1-3000
Aesthetic cover for 48V DC electrified track, lenght 3000mm (118,1"), black.
-
YKS41900.01
Suspension kit with 2000mm (78,7") long steel wire and regulator, for electrified track, one every 450mm.
-
9603/B
Linear electrified joint for 48V DC DALI track, black.
-
9605-O/B
L-shaped junction cover for ceiling-mounted 48V DC electrified track, black.
-
9605-O/W
L-shaped junction cover for ceiling-mounted 48V DC electrified track, white.
-
9605-V/B
L-shaped junction cover for wall-ceiling corner for ceiling-mounted 48V DC electrified track, black.
-
9605-V/W
L-shaped junction cover for wall-ceiling corner for ceiling-mounted 48V DC electrified track, white.
-
9611/B
Electrified "L" joint for 48V DC DALI track, black.
-
9618-S/B
Flexible electrified joint for 48V DC DALI track, black.
-
YRS.B048.A16
Repeater device for opto-isolating the data bus, for 48V DC DALI electrified track.
